Question #218493
Sketch:
i. The voltage diagram for a RLC and LC circuit
ii. Current - voltage relation for a purely resistive circuit.
1
Expert's answer
2021-07-25T18:44:02-0400

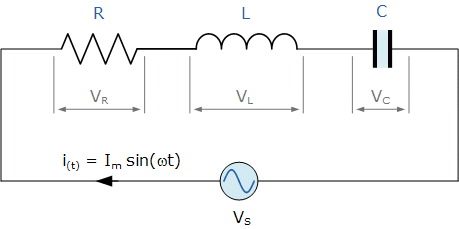

1. RLC :-




LC circuit:-





2. Current voltage relation :-



I=VzI=\frac{V}{z}

Impedance z=R2+(XLXc)2\sqrt{R^2+{(X_L-X_c)}^2}

Purely resistive circuit

z=Rz=R

I=VRI=\frac{V}{R}
