Answer to Question #175930 in Electric Circuits for Joshua Musyoki

Question #175930

A conductor of length 𝐿 moves at a steady speed vat right angles to a uniform magnetic field of flux density 𝐵. Show that the e.m.f. 𝐸 across the ends of the conductor is given by the

equation 𝐸 = 𝐵𝑙𝑣.


1
Expert's answer
2021-03-29T09:02:37-0400

Let the velocity of the rod be v m/sv \space m/s

Magnetic flux density = B T/m2

Length of rod = ll m

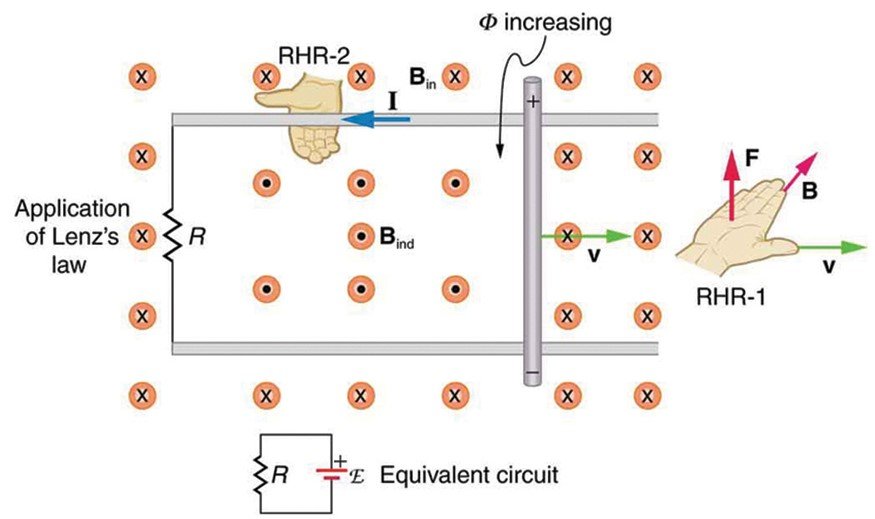

Any change in magnetic flux induces an emf opposing that change—a process known as induction. Motion is one of the major causes of induction.

Charges moving in a magnetic field experience the magnetic force F=qvBsinθF=qvBsin\theta , which moves opposite charges in opposite directions.


From Faraday's law,

Magnitude of emf induced along the moving rod = NΔΦΔtN\dfrac{\Delta\Phi }{\Delta t} (1)

As the number of turns in this coil is equal to one

\therefore N=1

Flux, Φ=BAcosθ\Phi=BAcos\theta

Since, magnetic field is perpendicular to the area of cross-section

θ=0°, cos0°=1\theta=0\degree,\space cos0\degree=1

ΔΦ=Δ(BA)ΔΦ=BΔAΔΦ=BlΔx\Delta\Phi=\Delta (BA)\\\Rightarrow\Delta\Phi=B\Delta A\\\Rightarrow\Delta\Phi=Bl\Delta x


Substituting the value of N and ΔΦ\Delta\Phi in equation (1),

we get,

emf =BlΔxΔt=Bl\dfrac{\Delta x}{\Delta t}

Since ΔxΔt=v,\dfrac{\Delta x}{\Delta t}=v, the velocity of the rod

 emf=Blv\therefore \space emf=Blv (B,lB,l and vv are perpendicular to each other)

The above expression gives the motional emf.
