Answer to Question #171640 in Electric Circuits for Pranali Patil

Question #171640

You are building a cathode ray tube and you need to ensure that the electron gun emits electrons at 4500000m/s; if the field in the electron gun is created by two plates separated by 5.5cm, what voltage should you use?


1
Expert's answer
2021-03-16T09:01:34-0400

Explanations & Calculations

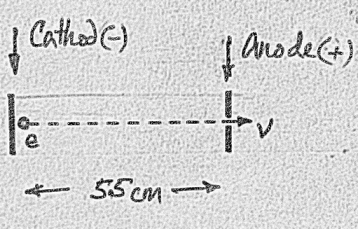

  • A simple way of the electron gun can be sketched as shown


  • What happens is that a force is generated on the electron (F=Eq\small F=Eq) which accelerates it towards the anode with the final velocity as described in the description.
  • Since the field is uniform, the acceleration is constant & to get a connection between the data, the four equations of motion can be employed.
  • Field between a plates is given by E=ΔVd\small E = \Large\frac{\Delta V}{d}
  • Then,

v2=u2+2asv2=0+2Fmd=2ΔVqmddΔV=mv22q\qquad\qquad \begin{aligned} \small \rightarrow v^2&=\small u^2+2as\\ \small v^2 &=\small 0+2\cdot\frac{F}{m}\cdot d\\ &=\small 2\cdot\frac{\Delta Vq}{md}\cdot d\\ \small \Delta V&=\small \frac{mv^2}{2q} \end{aligned}

  • The same result can be gained by considering the work transferred on to the electron by the fiels

12mv2=qΔV\qquad\qquad \begin{aligned} \small \frac{1}{2}mv^2&=\small q\Delta V \end{aligned}

  • Mass of en electron is 9.11×1031kg\small 9.11\times10^{-31}kg and its charge is 1.6×1019C\small -1.6\times10^{-19}C
  • Therefore,

ΔV=9.11×1031kg×(4.5×106ms1)22×1.6×1019C=57.649V\qquad\qquad \begin{aligned} \small \Delta V &=\small \frac{9.11\times10^{-31}kg\times(4.5\times10^6ms^{-1})^2}{2\times1.6\times10^{-19}C}\\ &=\small \bold{57.649\,V} \end{aligned}
