Answer to Question #92416 in Classical Mechanics for adhil
2019-08-08T08:58:00-04:00
an object of mass 90 kg is being moved over an inclined plane of two angles 30 and 60. Calculate the force required in each case to achieve the acceleration of 1 m/s^2
1
2019-08-09T10:49:27-0400

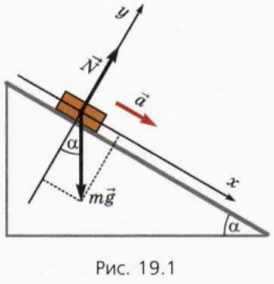

Newton’s second law:
N ⃗ + m g ⃗ + F ⃗ = m a ⃗ \vec{N}+m\vec{g}+\vec{F} = m\vec{a} N + m g + F = m a Projection on OX:
m g sin ( α ) + F = m a F = m ( a − g sin ( α ) ) a ) α = 3 0 ∘ F = 90 ⋅ ( 1 − 9.81 ⋅ 0.5 ) = − 351.45 N b ) α = 6 0 ∘ F = 90 ⋅ ( 1 − 9.81 ⋅ 3 2 ) = − 674.61 N mg\sin(\alpha)+F = ma\\
F = m(a-g\sin(\alpha))\\
a) \alpha= 30^\circ\\
F=90\cdot(1-9.81\cdot 0.5) = -351.45 N\\
b) \alpha = 60^\circ\\
F=90\cdot(1-9.81\cdot \frac{\sqrt{3}}{2}) = -674.61 N m g sin ( α ) + F = ma F = m ( a − g sin ( α )) a ) α = 3 0 ∘ F = 90 ⋅ ( 1 − 9.81 ⋅ 0.5 ) = − 351.45 N b ) α = 6 0 ∘ F = 90 ⋅ ( 1 − 9.81 ⋅ 2 3 ) = − 674.61 N
