Question

An object starts from rest and accelerates for 0.24 meter per second square for 2 minutes and continues at a steady speed for 3 minutes and slow down to stop for 1 minute. a. Draw graph for the motion. b. Calculate the maximum velocity in km/hr. c. Determine the retardation. d. find the displacement in 5 minutes.

Answer 1

Answer on Question #76235 Physics / Atomic and Nuclear Physics

An object starts from rest and accelerates for $a = 0.24$ meter per second square for $t_1 = 2$ minutes and continues at a steady speed for $t_2 = 3$ minutes and slow down to stop for $t_3 = 1$ minute. A) Draw graph for the motion. B) Calculate the maximum velocity in km/hr. C) Determine the retardation. D) Find the displacement in 5 minutes.

Solution:

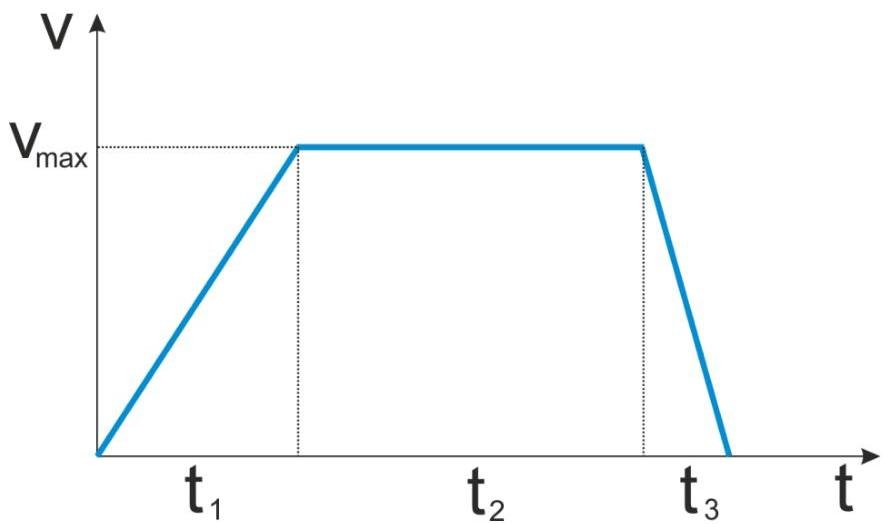

A)

B) $v_{\mathrm{max}} = at_1 = 0.24 \times 2 \times 60 = 28.8 \frac{\mathrm{m}}{\mathrm{s}} = 103.68 \frac{\mathrm{km}}{\mathrm{h}}$

C) $a_3 = \frac{0 - v_{\mathrm{max}}}{t_3} = \frac{0 - 28.8}{60} = -0.48 \frac{\mathrm{m}}{\mathrm{s}^2}$

D) $s = \frac{v_{\mathrm{max}}}{2} t_1 + v_{\mathrm{max}}t_2 = \frac{28.8}{2}\times 2\times 60 + 28.8\times 3\times 60 = 6912\mathrm{m}$

Answers: $103.68 \frac{\mathrm{km}}{\mathrm{h}}$ , $-0.48 \frac{\mathrm{m}}{\mathrm{s}^2}$ , $6912 \mathrm{~m}$
