Answer to Question #259799 in Discrete Mathematics for rtf

Discrete Mathematics

Question #259799

Given the following Boolean expression on it, draw a logic gate circuit for this function. AB+ C (A+B)

Expert's answer

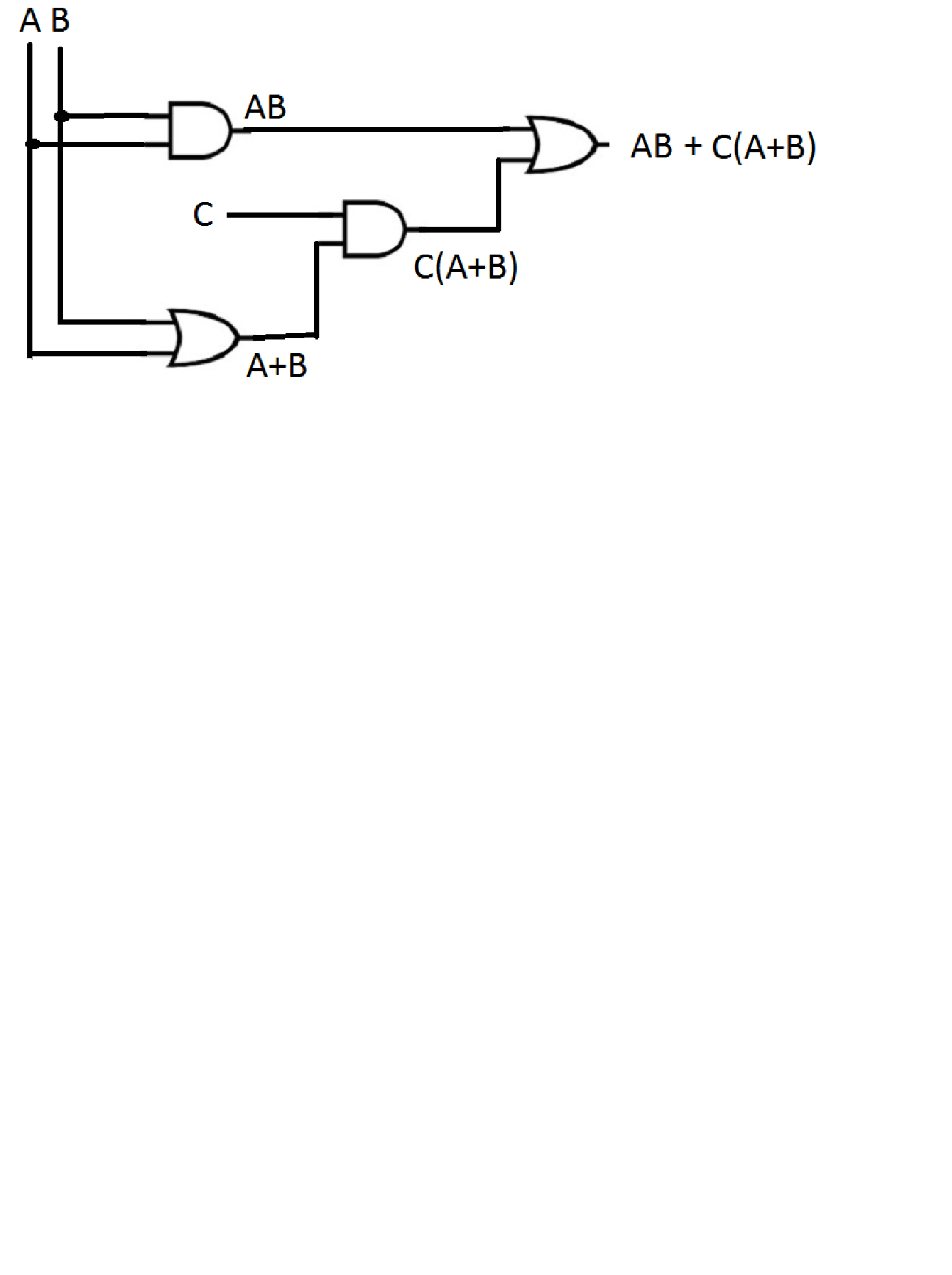

The answer to your question is provided in the image:

Learn more about our help with Assignments: Discrete Math
