Answer to Question #299092 in Mechanical Engineering for Mechanical

Question

In crank and slotted lever quick return mechanism, the crank length is (100 +X )mm and the distance between the fixed center is (225+X)mm. The length of the slotted lever is (525+X)mm. Determine the ration of time of cutting stroke to time of return stroke. Also calculate the length of the stroke .

Answer 1

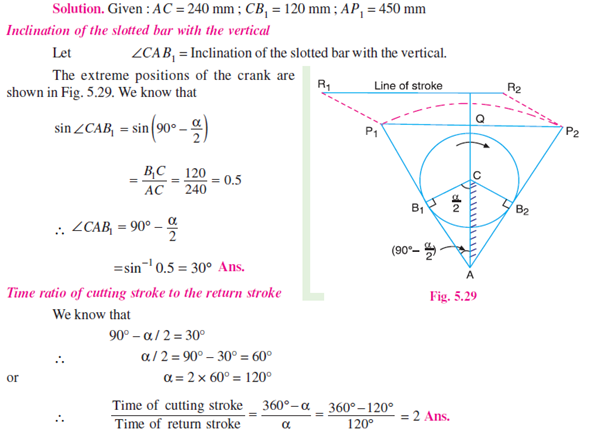

In a crank and slotted lever quick return motion mechanism, the distance between the fixed centres is 240 mm and the length of the driving crank is 120 mm. Find the inclination of the slotted bar with the vertical in the extreme position and the time ratio of cutting stroke to the return stroke. If the length of the slotted bar is 450 mm, find the length of the stroke if the line of stroke passes through the extreme positions of the free end of the lever.
