Answer to Question #167561 in Mechanical Engineering for Ahmed

Question #167561

Design and draw a right-angled bell crank leaver to raise a Vertical load of 8560 N at the longer arm end. The arm length are 60 cm. The permissibe stresses in shear and tension for the lever and pin materials must be below 6000 N/Cm^2 , respectiviely. Maximum bearing stress of pins is 15 N/mm^2


1
Expert's answer
2021-03-02T00:53:36-0500

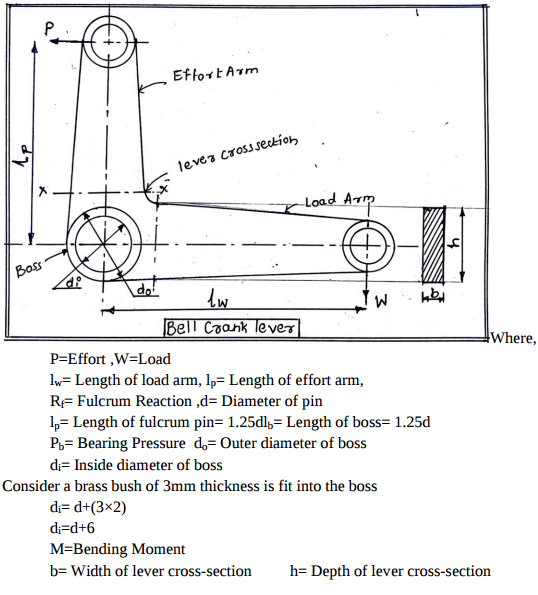

Consider the diagram below
