Answer to Question #266884 in Material Science Engineering for Sanjay

Material Science Engineering

Question #266884

For an Fe-C system with 0.35 wt.% of C, identify the following.

1. Amount of Proeutectoid and Eutectoid phases.

2.Amount of total ferrite and cementite

Expert's answer

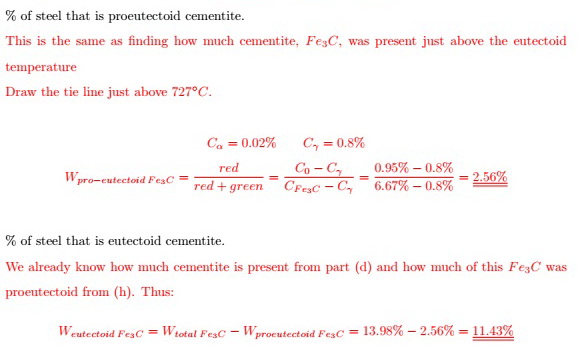

The answer to your question is provided in the image:
