Design and draw π- type high pass filter having cut of frequency of 2kHz and load
resistance of 500Ω.

Answer 1

Answer on question #85268, Engineering Electrical Engineering

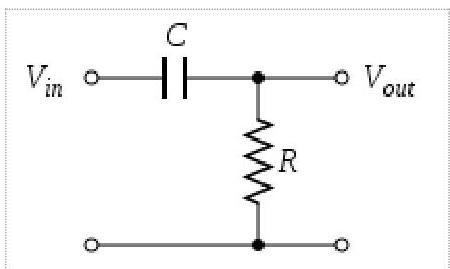

Design and draw $\pi$-type high pass filter having cut of frequency of $2\mathrm{kHz}$ and load resistance of $500\Omega$.

Solution

$$C = \frac {1}{2 \cdot \pi \cdot f \cdot R} = \frac {1}{2 \cdot 3.14 \cdot 2000 \cdot 500} = 0.1592 \cdot 10^{-6} F$$ $$R = 500\ \mathrm{Ohm}$$ $$f = 2000\ \mathrm{Hz}$$
