Question

LM317 is an example of a __________ terminal adjustable regulator
two
three
four
six

Answer 1

Answer on Question #55426, Engineering / Electrical Engineering

LM317 is an example of a ______ terminal adjustable regulator

- two

- three

- four

- six

Solution:

The LM317 Voltage Regulator is a **3-terminal** adjustable voltage regulator, which can supply an output voltage adjustable from 1.2V to 37V. It can supply more than 1.5A of load current to a load.

The LM317 has three pins: INput, OUTput, and ADJustment.

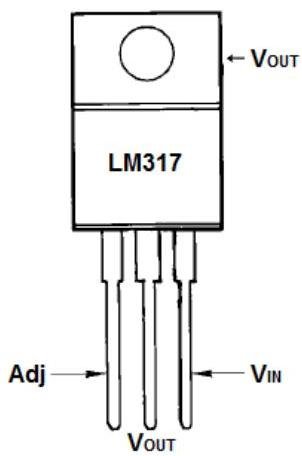

Front View

Answer: three
