Answer to Question #293120 in Electrical Engineering for macha

Question

Plot the variation in impedance wrt the frequency in a series RLC circuit fed with an  alternating current supply of variable frequency.

Answer 1

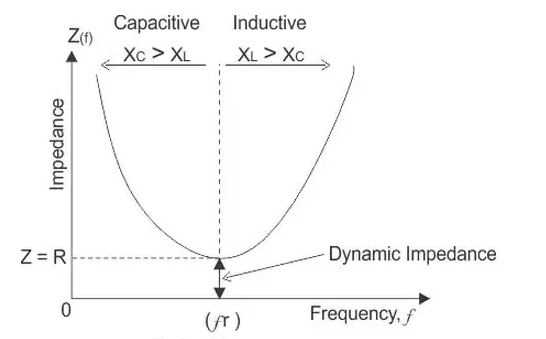

impedance wrt the frequency in a series RLC circuit:

The inductive and capacitive impedance cancel out each other at the resonant frequency, so the impedance is resistive.
