Answer to Question #274834 in Electrical Engineering for MD HUMAYAN KABIR

Question

The excess hole concentration within the quasi-neutral n-type region of a silicon p+n

step junction of area A = 1mm × 1mm maintained at T = 300K is plotted on a linear

scale below. The hole lifetime τp = 10-6 s. ni = 1010 cm-3.(1) Calculate the applied voltage, VA.

(2) Calculate the minority-carrier charge stored in this diode, QP.

(3) Calculate the diode current, I.

Answer 1

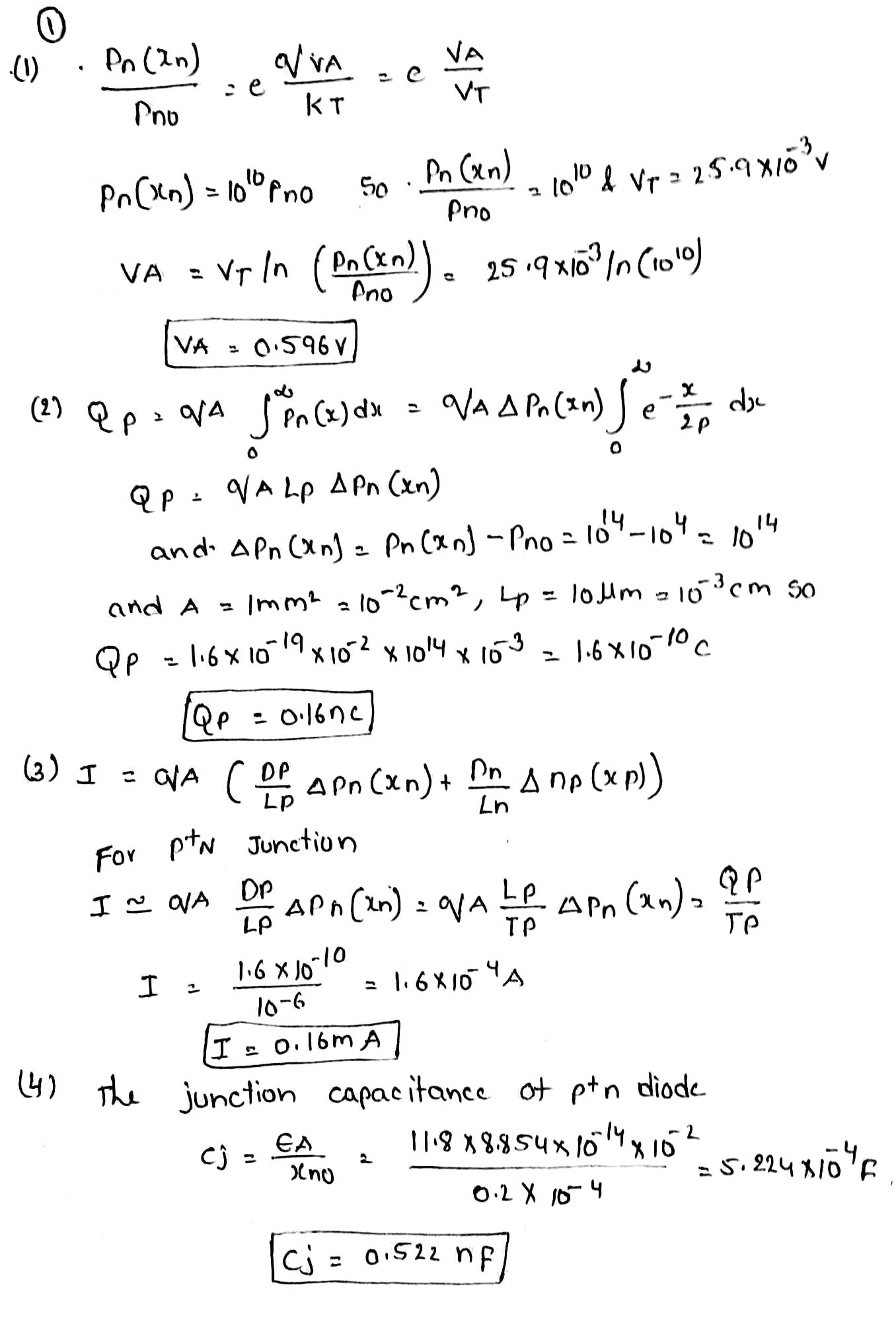

The answer to your question is provided in the image:
