Answer to Question #263528 in Electrical Engineering for LUCIFER

Question

Explain the Memory stack organization of 16 locations of stack( 0 to 15). take the initial value of the

stack pointer is SP = 0E in Hex. Explain the following push and pop instructions through the Memory

stack organization diagram.

(1) PUSH R5 WHERE R5 = XX in Hex

(2) POP R4 WHERE R4 = (XX + 3 ) Hex for example roll no 64 is having the data in R5 = 64

Hex and R4 is ( 64+3 = 67 Hex)

Answer 1

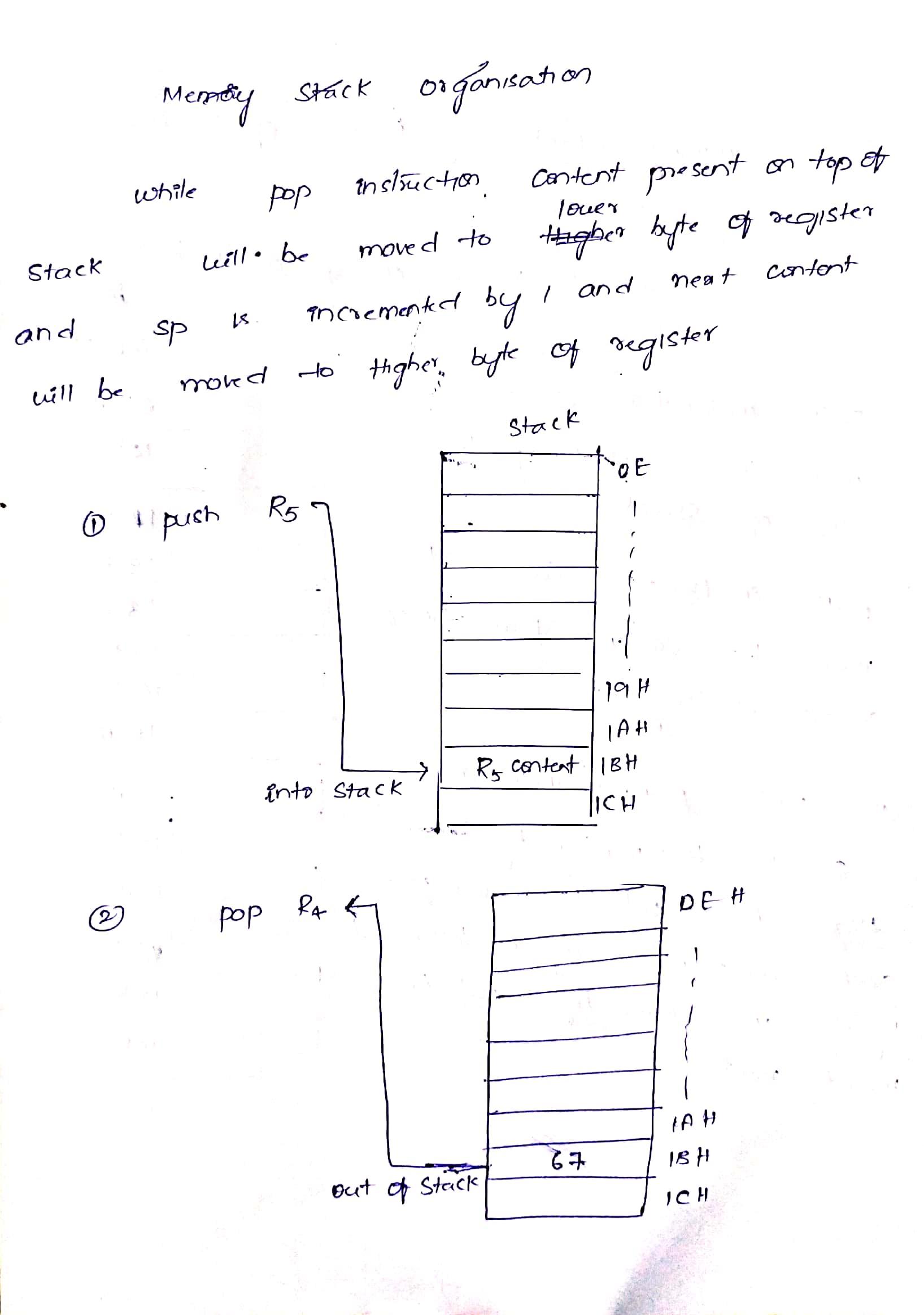

The answer to your question is provided in the image:
