Answer to Question #258964 in Electrical Engineering for SUNNY

Question

Explain various addressing modes available in computer organization with neat example.

Answer 1

Immediate Mode

In this mode, the operand is specified in the instruction itself. An immediate mode instruction has an operand field rather than the address field.

For example: ADD 7, which says Add 7 to contents of accumulator. 7 is the operand here.

Register Mode

In this mode the operand is stored in the register and this register is present in CPU. The instruction has the address of the Register where the operand is stored.

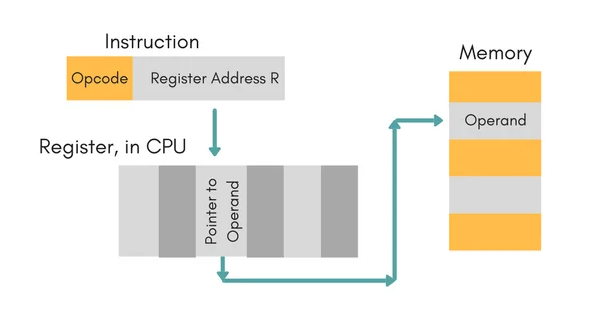

Register Indirect Mode

In this mode, the instruction specifies the register whose contents give us the address of operand which is in memory. Thus, the register contains the address of operand rather than the operand itself.

Auto Increment/Decrement Mode

In this the register is incremented or decremented after or before its value is used.

Direct Addressing Mode

In this mode, effective address of operand is present in instruction itself.
