Question #254572
Consider a steam power plant operating on a simple ideal Rankine cycle. Steam enters the turbine at 3 MPa and 3500C. The steam is then condensed in the condenser at a pressure of 75 kPa. Determine the thermal efficiency of the cycle and Draw a T-S diagram
1
Expert's answer
2021-10-22T03:06:33-0400

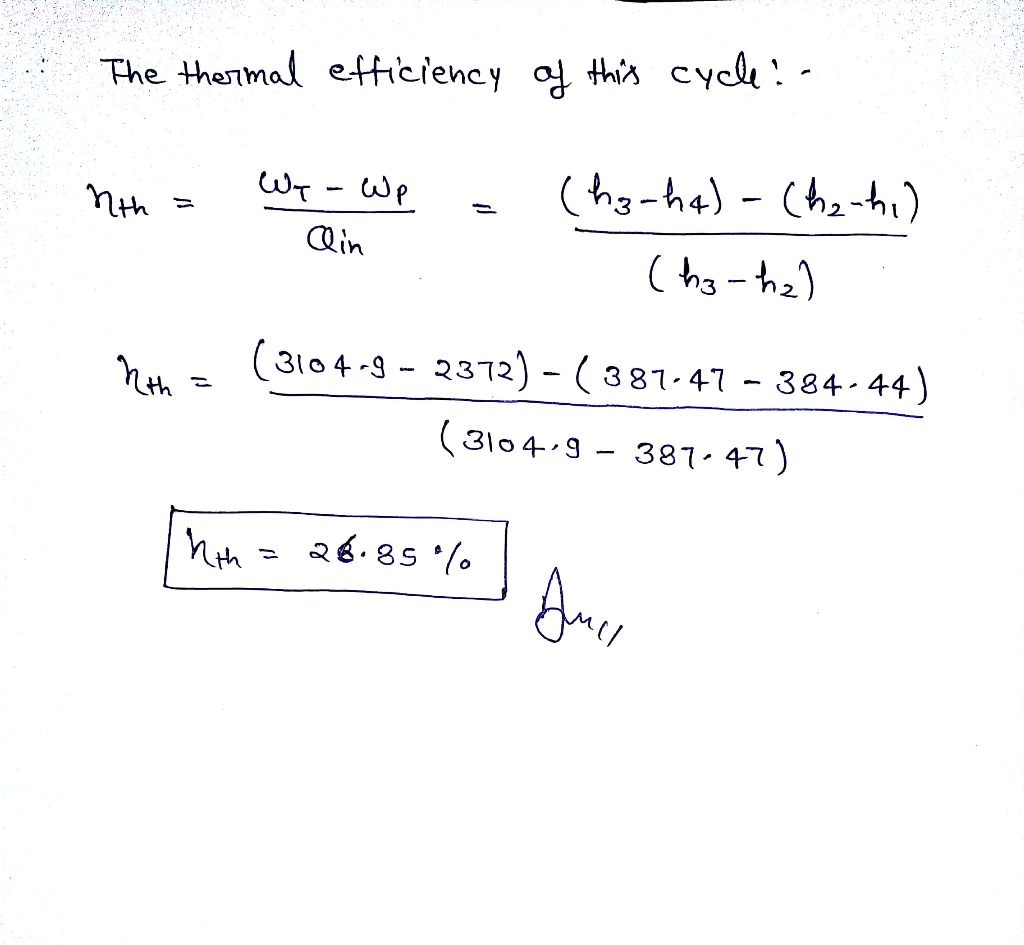

The answer to your question is provided in the image:
