Question #242256
Starting from an initial value of R in Hex is 47 determine the sequence of binary values in R
after a logical shift-left, followed by a circular shift-right, followed by a logical shift-right and a
circular shift-left. explain through the proper diagrams.
after a logical shift-left, followed by a circular shift-right, followed by a logical shift-right and a
circular shift-left. explain through the proper diagrams.

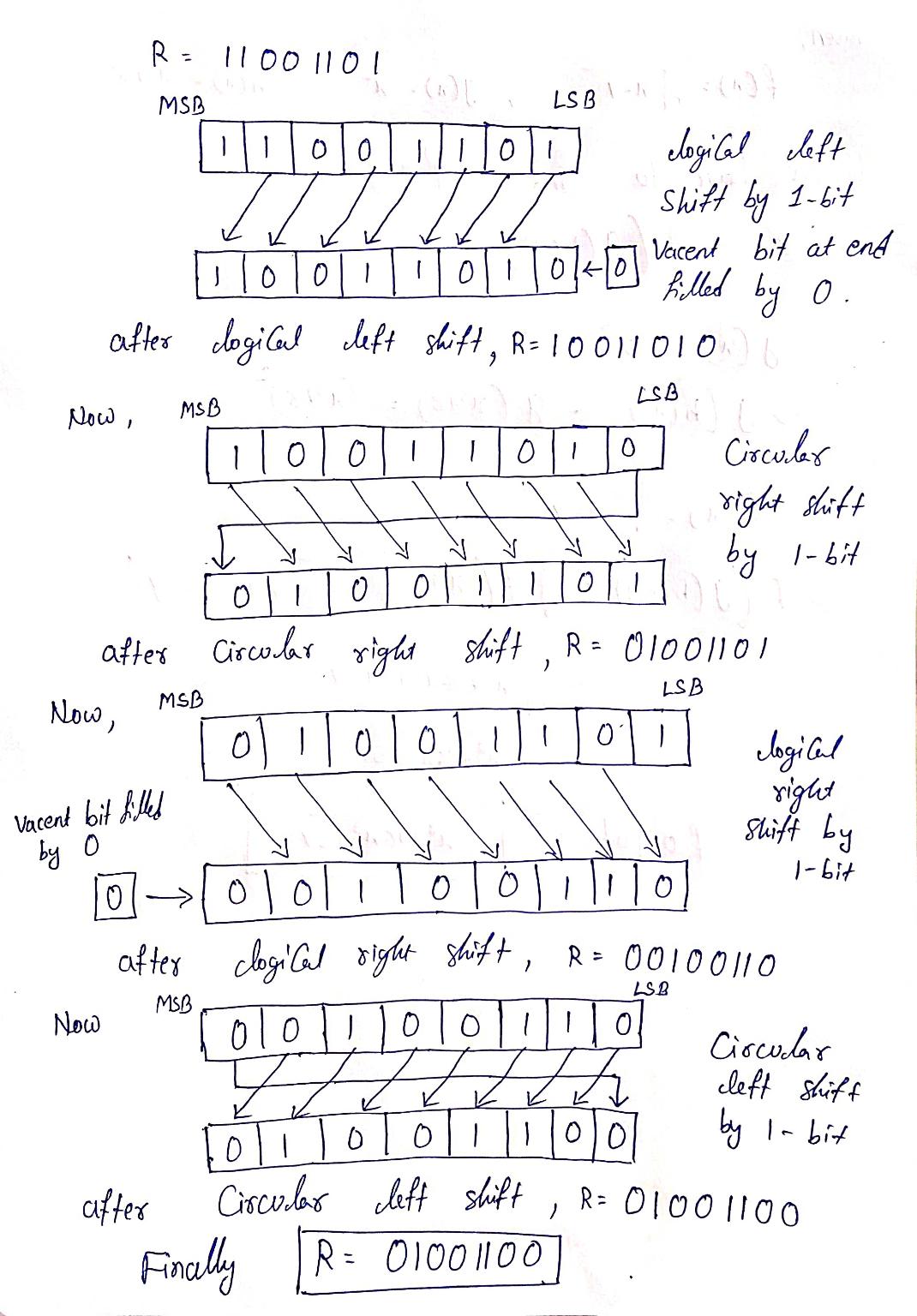

Expert's answer
MSB = Most Significant Bit
LSB = Least Significant Bit
