Answer to Question #242183 in Electrical Engineering for SUNNY

Question #242183


Q.1 Design a 6:64 decoder with lower configuration of decoders of your choice, also explain what other possible options can be followed. If the diagram is far big, consider shorthand notations appropriately.[


1
Expert's answer
2021-09-26T12:02:17-0400

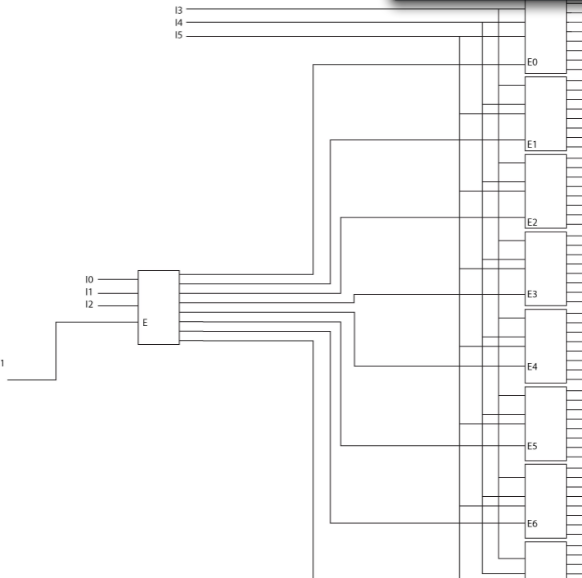

The idea is, when making higher order decoder from lower ones,if given decoder's input nX2nnX2n, and desired output decoder of 2nX22n2nX22n, it is better to use the above method, else if for nX2nnX2n given decoder, if output decoder is of form (n+1)X2(n+1)(n+1)X2(n+1) use the method of supplying one input to the enables of next levels of decoder.
