Answer to Question #242110 in Electrical Engineering for hbfgtnhtrh

Question

Explain the operation of a JK flipflop with a neat diagram. State how it can be converted into a T (toggle) Flipflop.

Answer 1

Converting J-K Flip-flop to T Flip-flop follows the following steps:

1.     We construct the characteristic table of T flip-flop and excitation table of J-K flip-flop. We can demonstrate this as captured below:

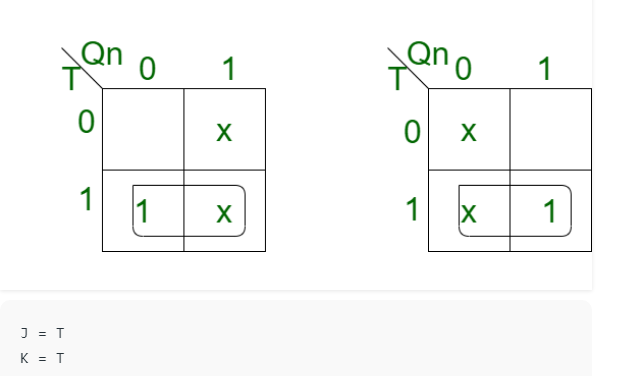

1.     We proceed and use K map to generate find the boolean expression for J and K in terms of T.

1.     Finally, we generate the diagram for the operated J-K flip-flop into T flip-flop as below:
