Answer to Question #232163 in Electrical Engineering for Alock kumar

Electrical Engineering

Question #232163

Simplify the following boolean function, using three-variable maps:

F(x, y, z) = Σ (1, 3, 5, 7)

Expert's answer

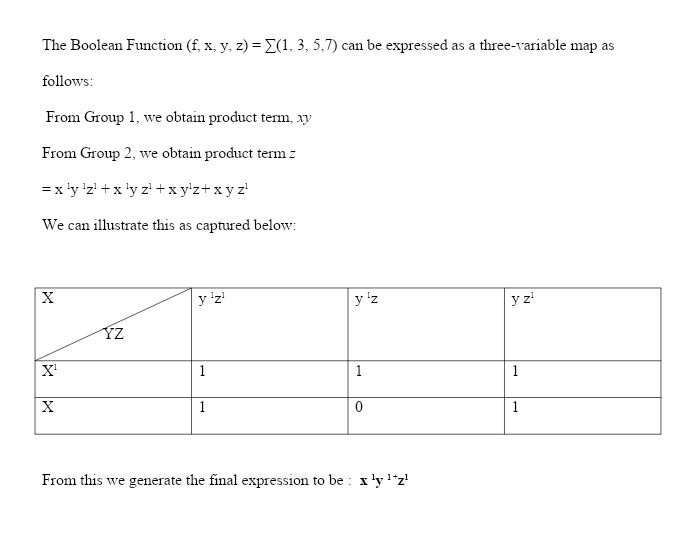

The answer to your question is provided in the image:

Learn more about our help with Assignments: Electrical Engineering

Comments

No comments. Be the first!
