Answer to Question #229270 in Electrical Engineering for Thabiso Mphago

Question

Question 1 With reference to Table 1 below, list quantities of electrical, magnetic and capacitive circuits which are analogous to the given ones. (One mark each) Electric circuits Magnetic Circuits Capacitive Circuits 8.1……………. Magnetic Flux 8.2 …………… 8.3 …………… 8.4 …………… e.m.f Potential difference 8.5 …………… 8.6 …………… 8.7 …………… 8.8 …………… Electric flux density 8.9 …………… 8.10 …………… Permittivity

Answer 1

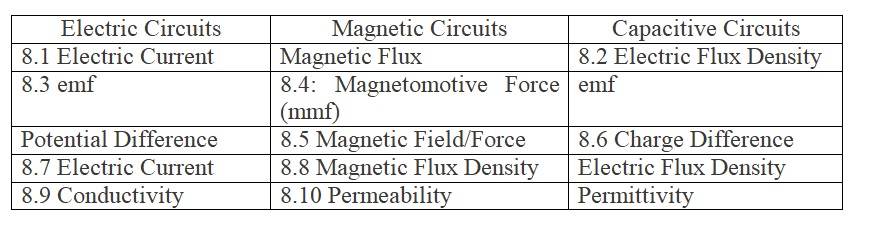

The answer to your question is provided in the image:
