Answer to Question #212185 in Electrical Engineering for Kabir

Electrical Engineering

Question #212185

Sketch the general current-voltage characteristics for both enhancement-mode and

depletion-mode MOSFETs. Define the saturation and nonsaturation bias regions.

Expert's answer

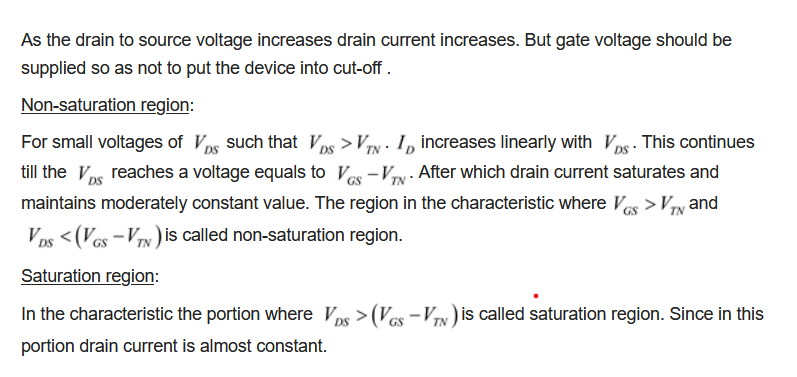

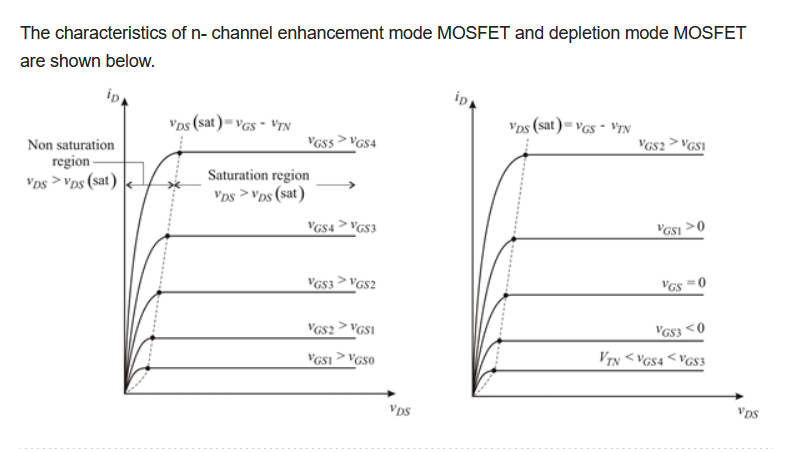

The answer to your question is provided in the image:

Learn more about our help with Assignments: Electrical Engineering

Comments

No comments. Be the first!
