Answer to Question #210601 in Electrical Engineering for rawr
The following information is given in connection with the parallel series circuit of Fig 3.4b:E = 48, R1 = 6, R2 = 12, R3 = 3, R4 = 15, R5 = 90, R6 = 30. Calculate (a) the total equivalent resistance of the entire circuit, (b) the total current, (c) the voltage drop across each section, (d) the current through each resistor, (e) the total power taken by the entire circuit. Rs R2 .Ro (6) Parallel-series circuit

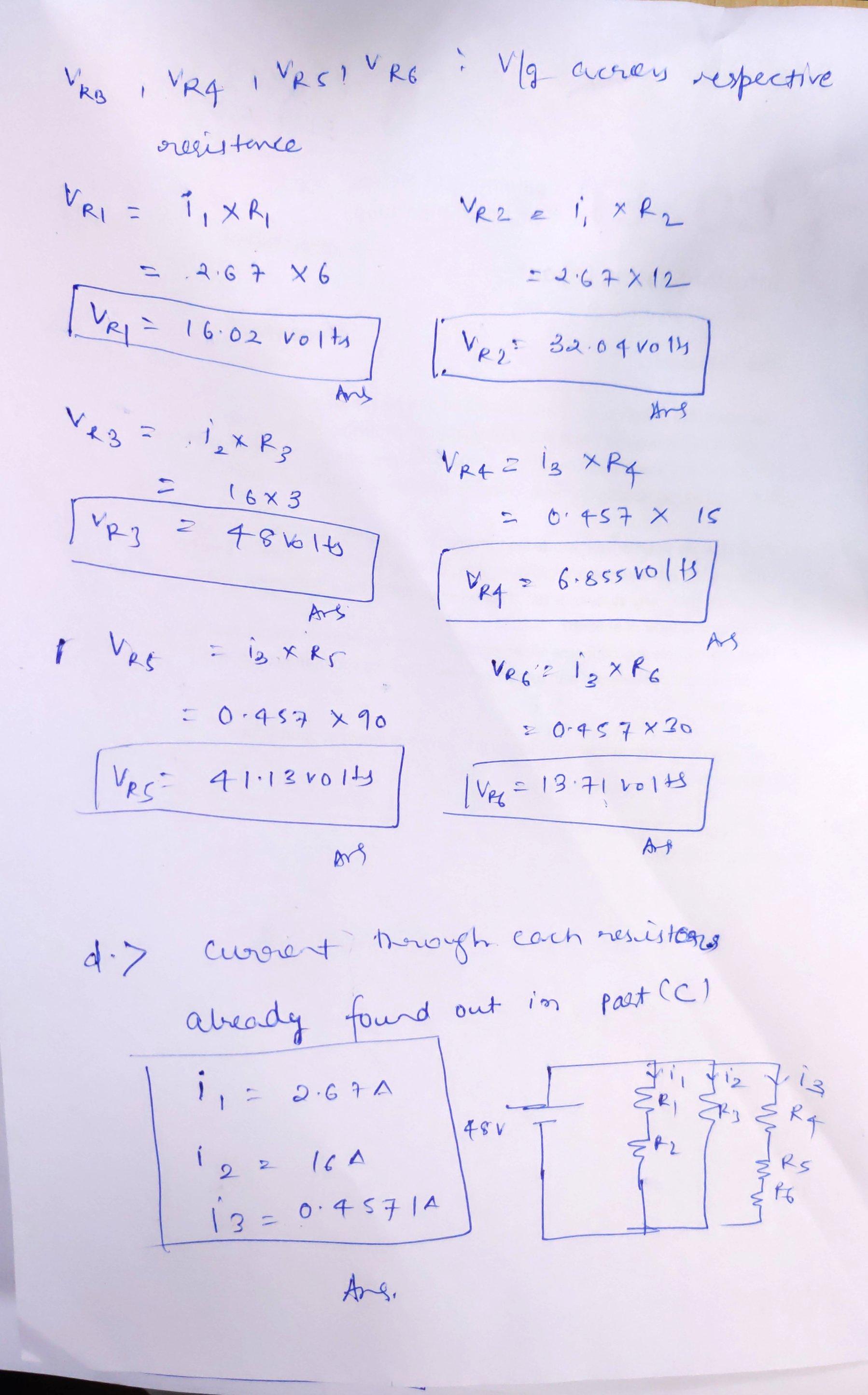

The answer to your question is provided in the image:
-
