Answer to Question #201817 in Electrical Engineering for Lucy

Question #201817

Design a sequence detector by using JK flip-flops. The sequence detector has one input x and one output y. When a sequence equivalent to least significant 4 bits of your roll number (*after converting your roll number to base-2) is detected at the streaming input x the output y is set to high (y=1). Unless the desired sequence is detected, the output y remains low (i.e., y=0). The detector should also be capable of detecting the overlapping sequences (if applicable) received at the input.

a) Draw state flow diagram (optimized)

b) Draw state transition table.

c) Find minimized expressions for inputs of flip-flops and output of the circuit.

d) Draw circuit diagram.

my roll number is 029 convert this into base 2 and design the sequence detector for least 4 bits sequence.


1
Expert's answer
2021-06-02T07:43:45-0400

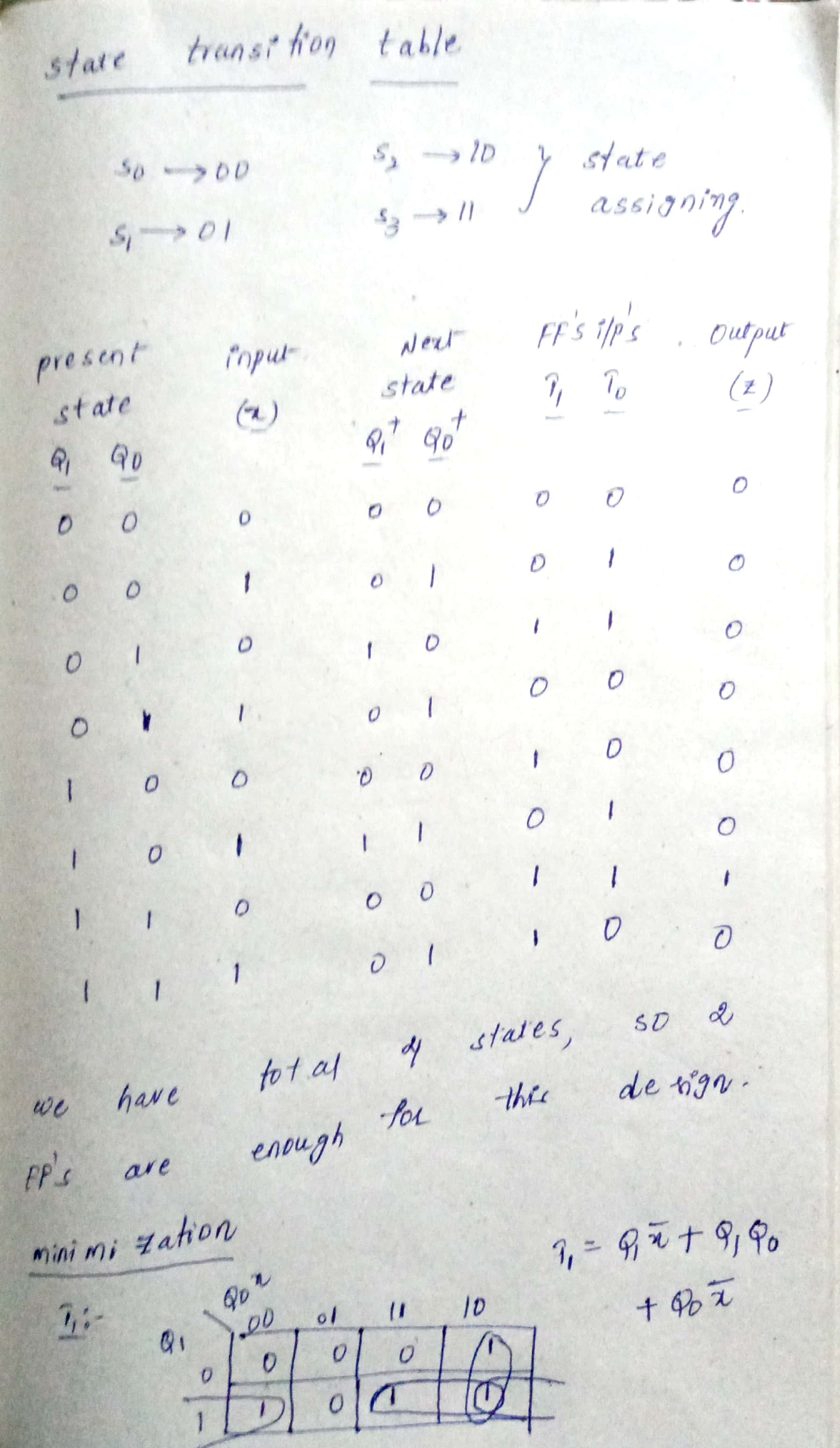

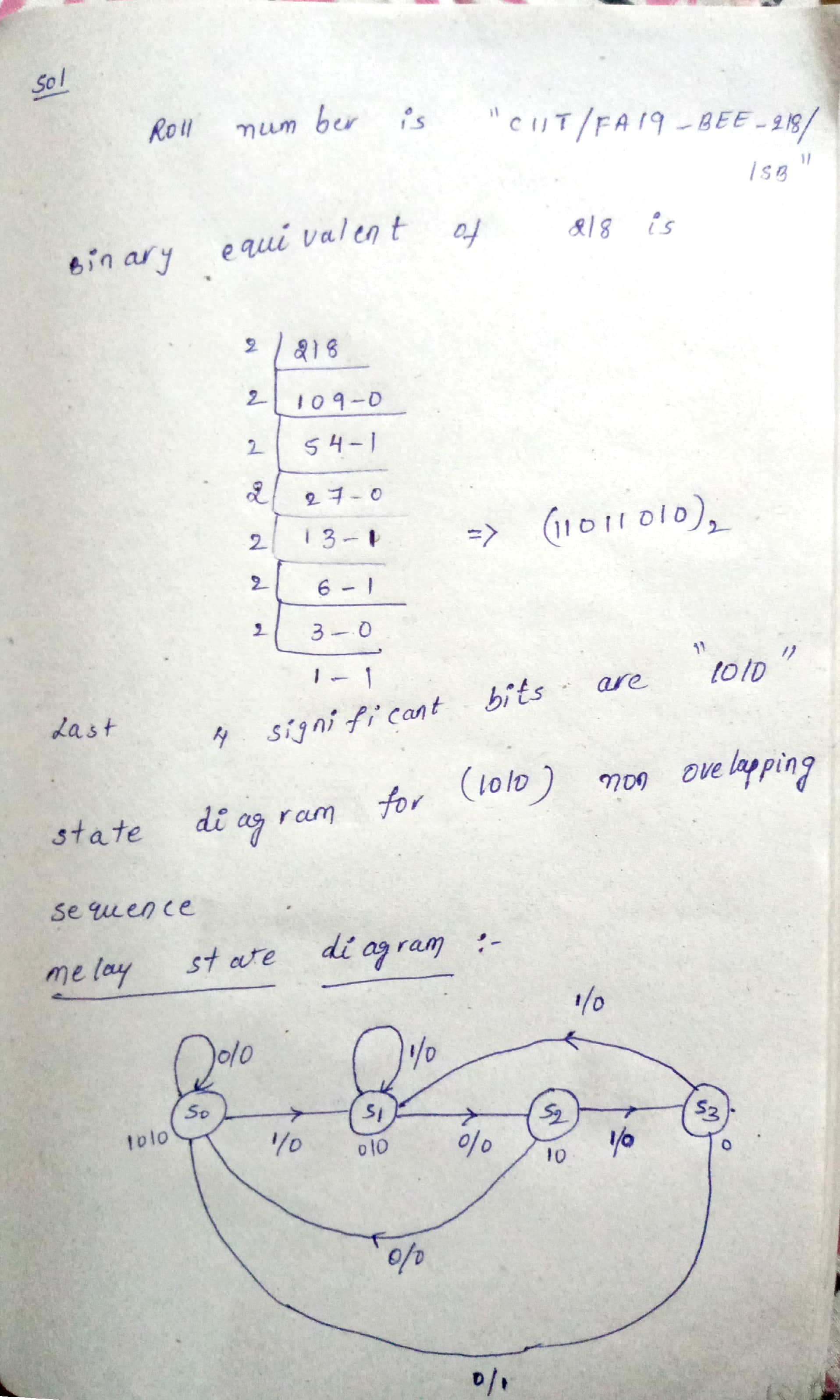

The answer to your question is provided in the image:
