Answer to Question #186635 in Electrical Engineering for Laraib

Question #186635

You have to design a logical circuit for a 4-bit composite number using K-MAP (SOP minimization). Provide the original and simplified Boolean expressions in SOP form. Covert SOP to POS using the K-Map.


1
Expert's answer
2021-05-05T07:41:29-0400

Logic circuit for 4 bit composite number is

"Y=AC+ABC + \\bar{A}BC+AB+D"

Simplifying the given boolean function

"Y=AC+ABC + \\bar{A}BC+AB+D"

"Y=AC+BC +(A \\bar{A})+AB+D"


SOP "\\implies Y=AC+BC + AB+D"


POS "\\implies Y=(\\bar{A}+ \\bar{C})(\\bar{B}+ \\bar{C})(\\bar{A}+ \\bar{B})(\\bar{D})"

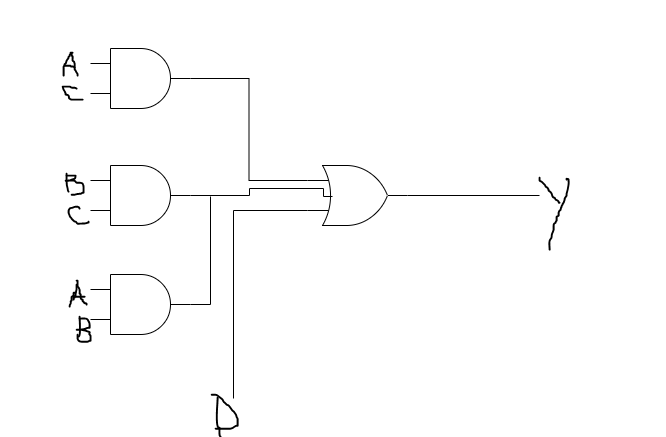

Implementation of SOP in a logic diagram


"Y=AC+BC + AB+D"
