Question #146239

Design an arbitrary counter which generates multiples of 3 at the output. But, the output is never greater than 30. Further, two successive outputs are always greater than 5. First, draw state diagram, write all the design steps and draw the final circuit.

Expert's answer

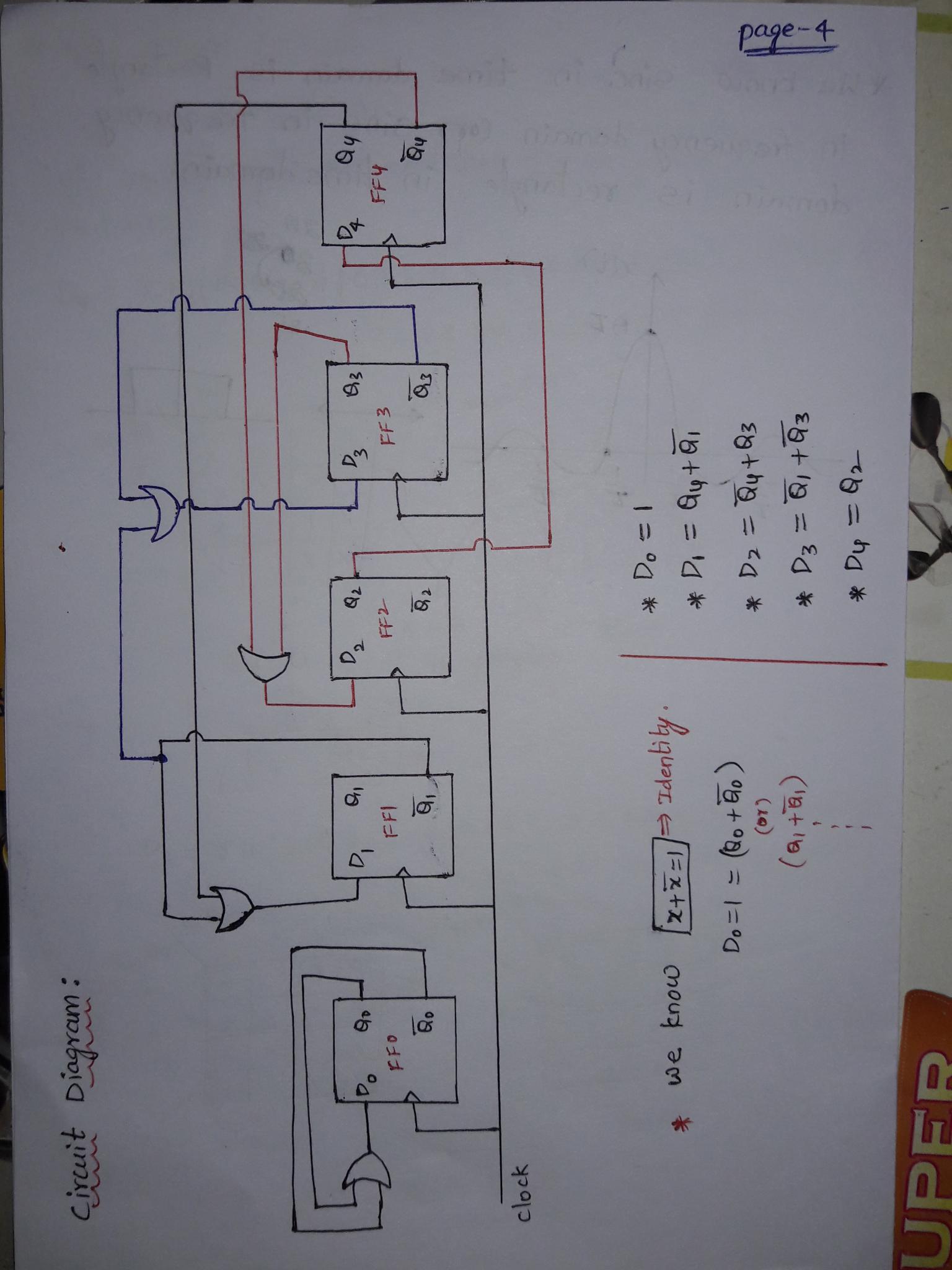

The answer to your question is provided in the image:
