Question #288060

A system of forces 340 N, 760 N, 800 N, 600 N, 700 N and 500 N (in order) acting on

900 mm by 400 mm plate (with negligible thickness) is shown. Find the resultants with

respect to O.

Expert's answer

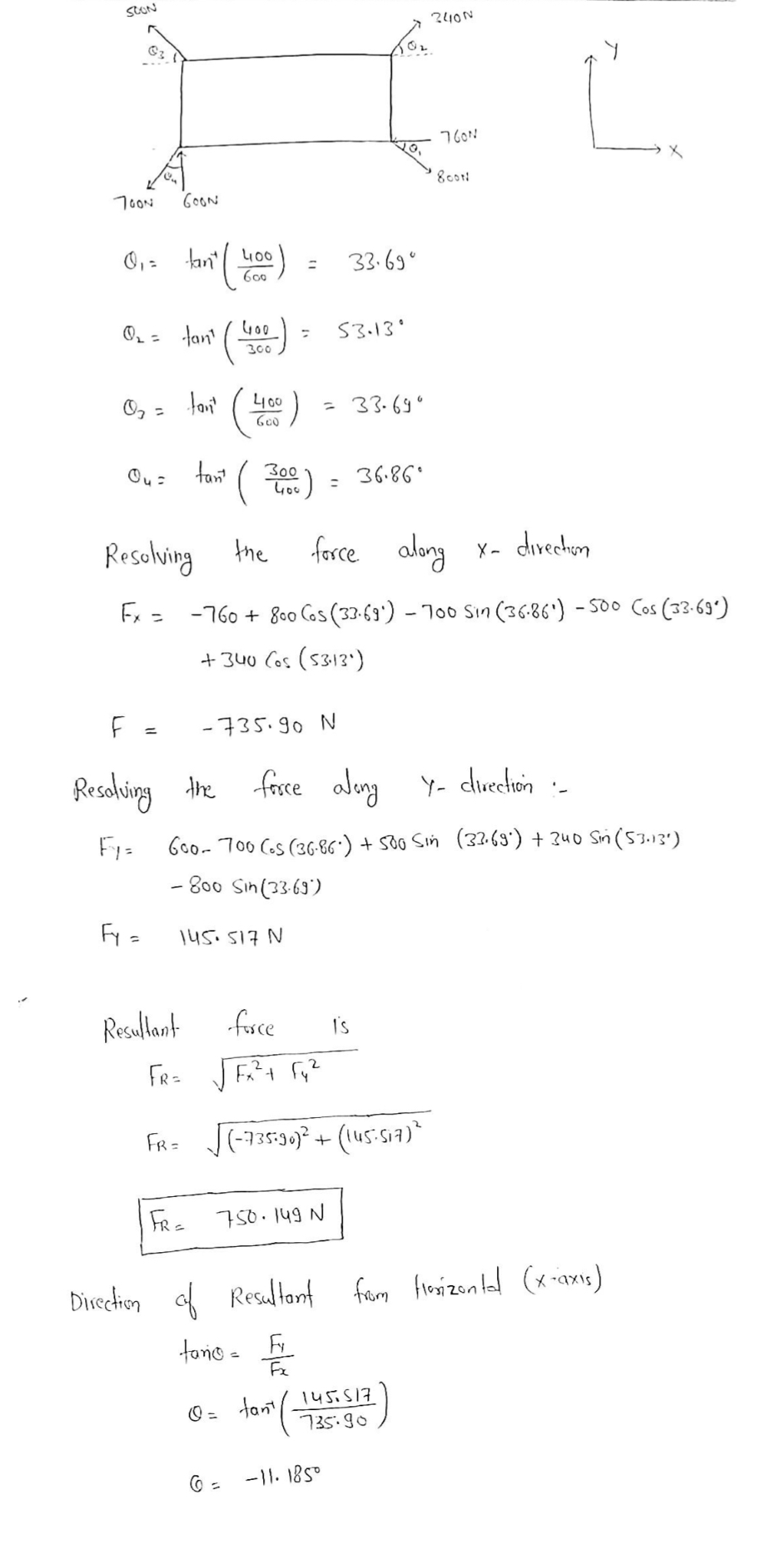

Answer is given below with figures:
