Question

From the given cross section of an earthworks between A ( 20+200) and B (20+220) assuming

both have same slope and width of base. All measurements are in meters.

a. Compute the width of the base.

b. Compute the value of cut at station B if it has an area of 16.82 m2

c. Compute the volume between A and B with prismoidal correction

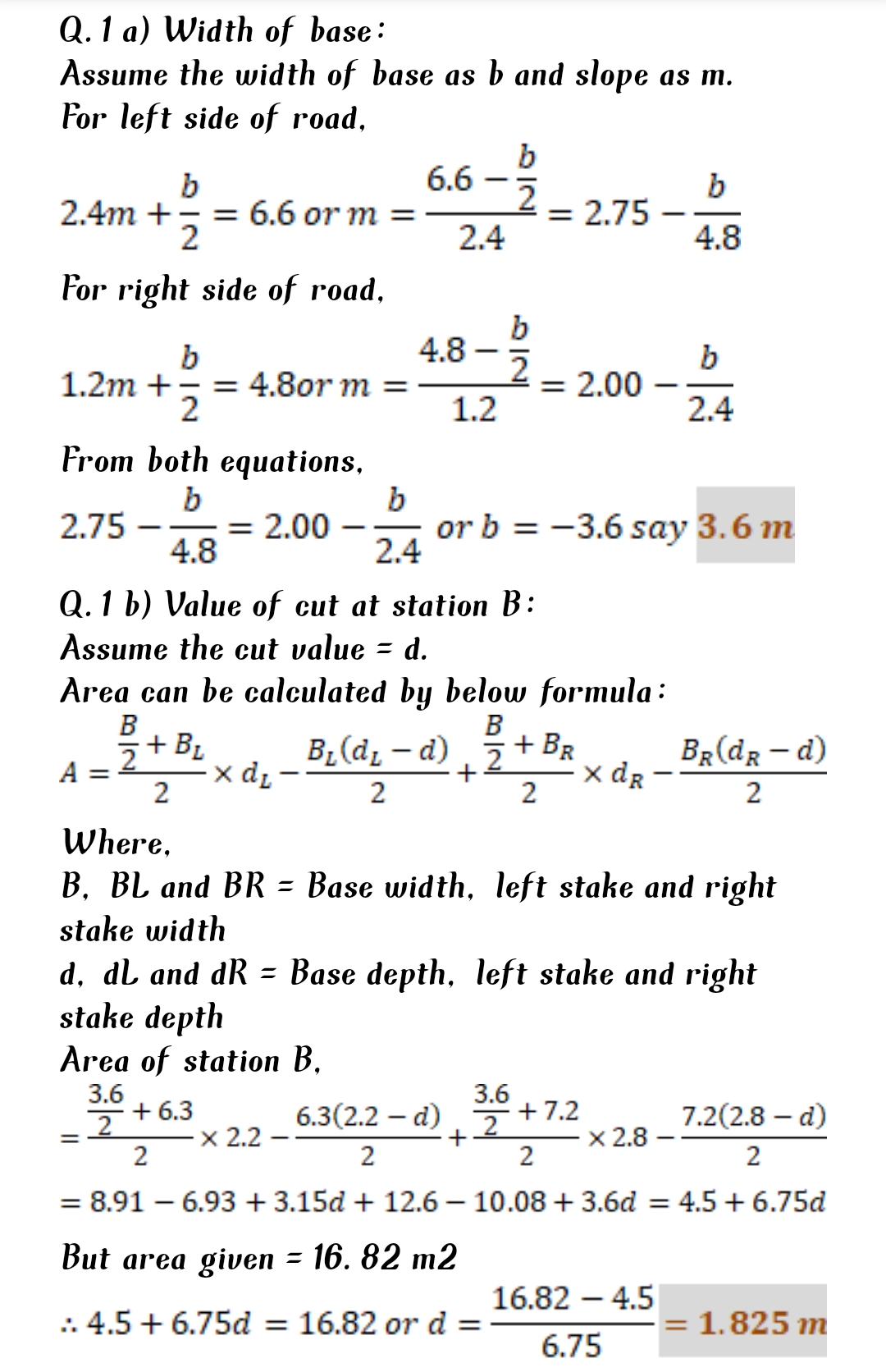

Answer 1

The answer to your question is provided below
