Answer to Question #230786 in Civil and Environmental Engineering for Vasu

Question

Draw BMD and SFD for an overhang beam ABC with span BC overhanging. The
loading and span data is as follows
Span AB = 6 m; Full Span UDL = 20 kN/m,
Span BC = 2 m; Full Span UDL = 30 kN/m
Span BC = 6 m; Point Load at C = 15 kN.

Answer 1

=-(15x8)+(-30x2)(7))+R_Bx6-(20x6)x3)

 =-120-420+6R_B-360

 0=6R_B-900

900=6R_B

R_B=150

R_A=45

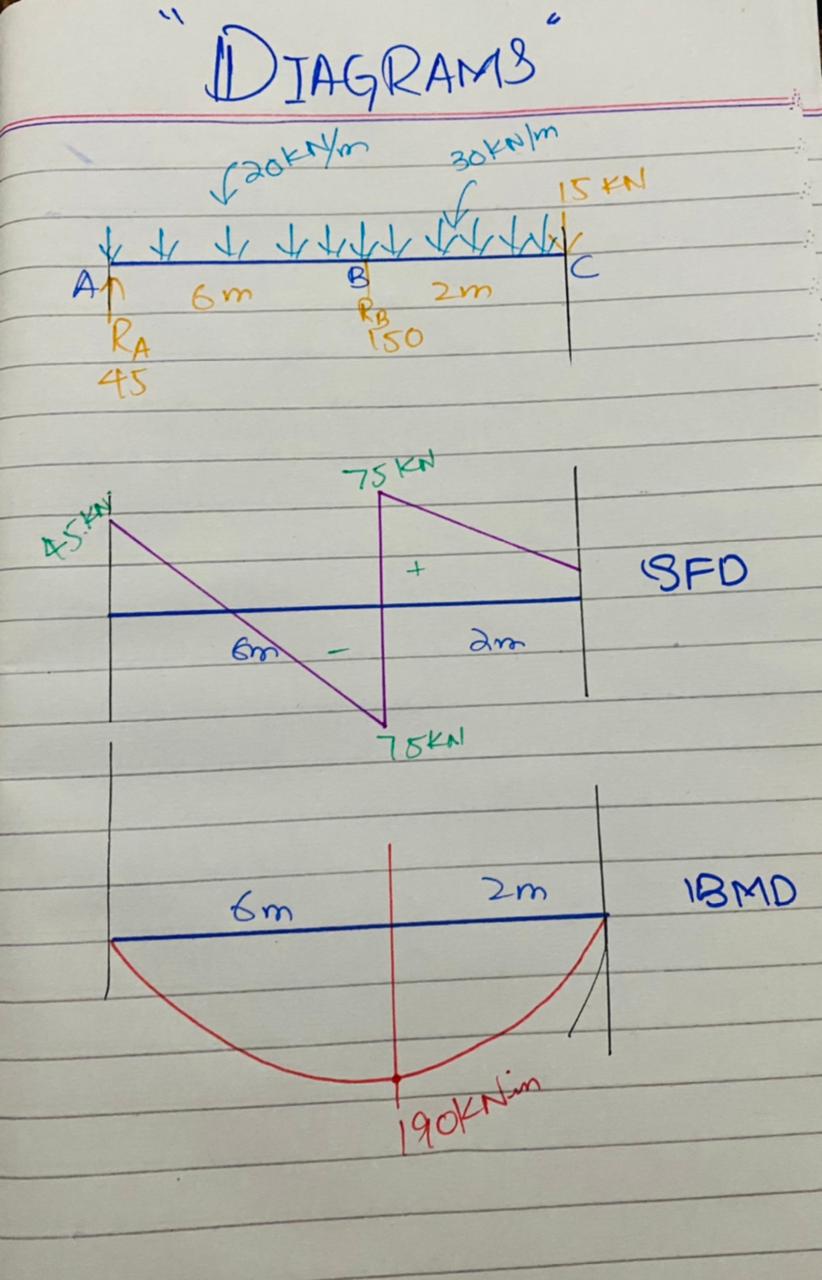

Bending moments

BM_c=0

BM_b=-30-60=-90

BM_A= -15x8-(6x70)+(150x6)-(120x3)

=0

THANK.,
