A 6 m simply supported beam carries an ultimate live load of 50kN at midspan. Determine the plastic moment of the beam.


1
Expert's answer
2021-06-02T07:43:13-0400





External deformation = Internal deformation.

EWD= IWD


EWD= Ultimate load ×\times δ\delta


while δ=l2θ\delta = \frac{l}{2} \theta


EWD = wu×l2θw_u \times \frac{l}{2} \theta

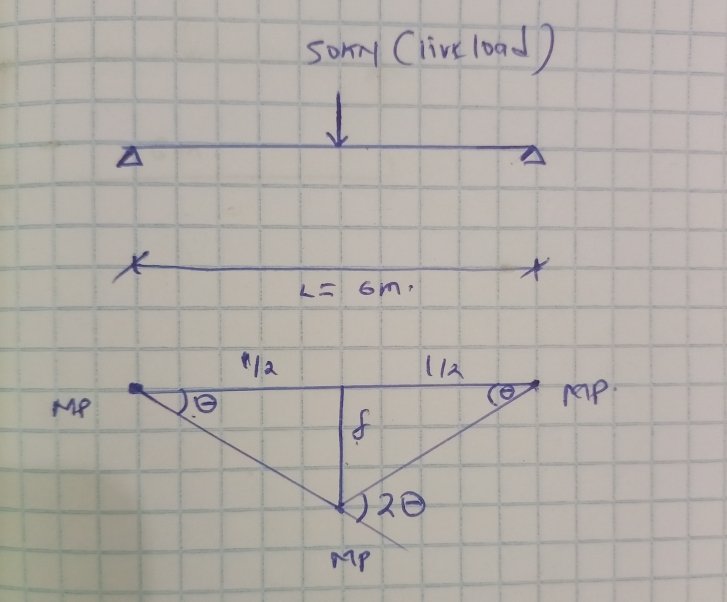

from the diagram

IWD = MPθ+MP2θ+MP0=4MPθM_P\theta + M_P2\theta + M_P0 = 4M_P\theta


IF IWD = EWD

then 4MPθ=wu×l2θ4M_P\theta= w_u \times \frac{l}{2} \theta


MP=wuL8=50×68=37.5KNmM_P= \frac{wuL}{8} = \frac{50 \times 6}{8} = 37.5 KNm
