Question #227802

a glass window with an area of 0.557 m² is installed in the wooden outside wall of a room. The wall dimension are 2.44 x 3.05 m. The wood has a k of 0.1505 W/m.K and is 25.4 mm thick. the glass is 3.18 mm thick and has a k of 0.692. the inside temperature is 299.9 K (26.7 degree Celsius) and the outside air temperature is 266.5 K . The convection coefficient hi on the inside wall of the glass and the wood is estimated as 8.5 W/m².K ; the outside ho is also estimated as 8.5 for both surfaces . Calculate the heat loss through the wooden wall, through the glass and the total


1
Expert's answer
2021-08-23T04:50:06-0400

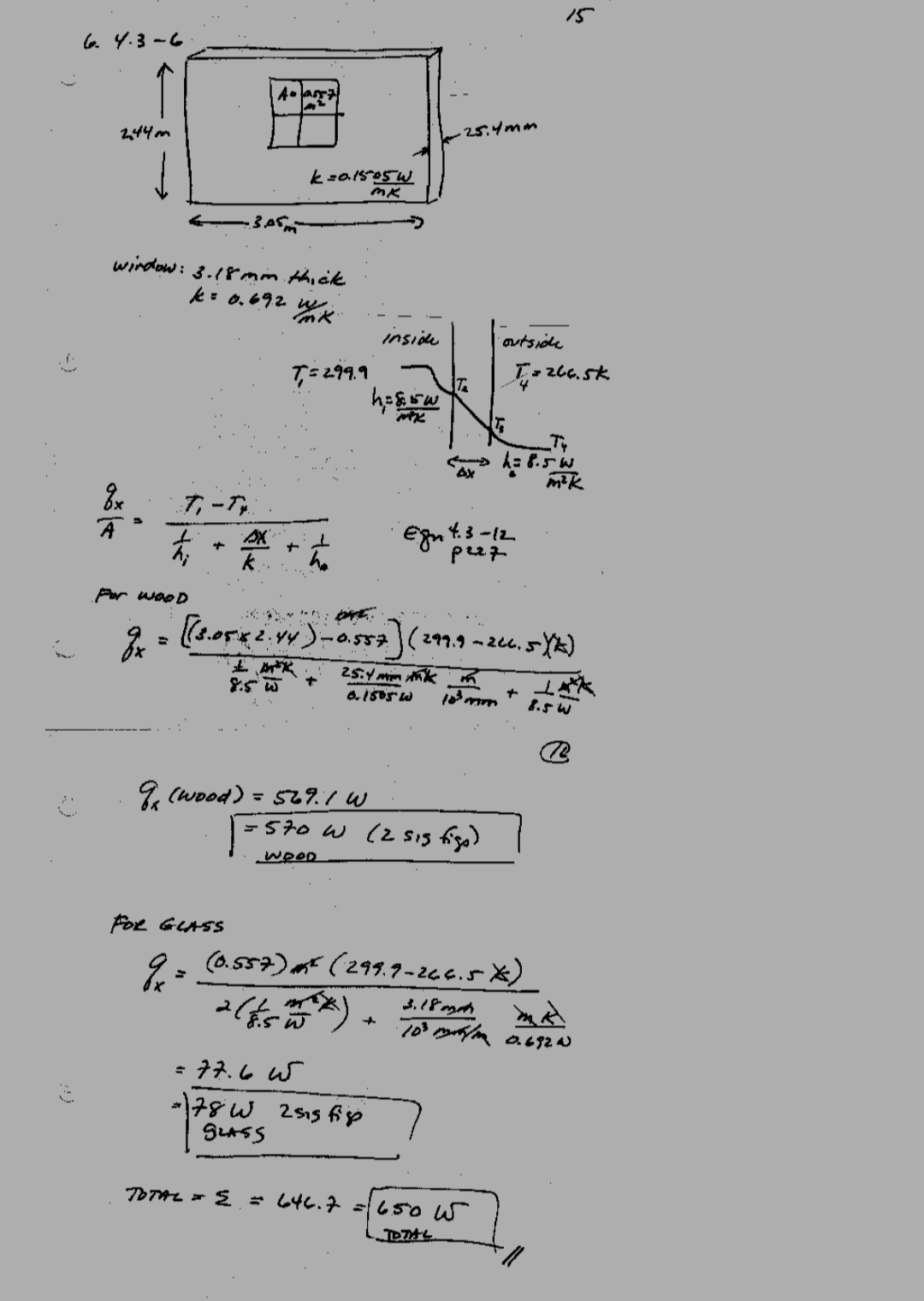

The answer to your question is provided in the image:
