Answer to Question #196516 in 3D CAD Modeling for King

Question #196516

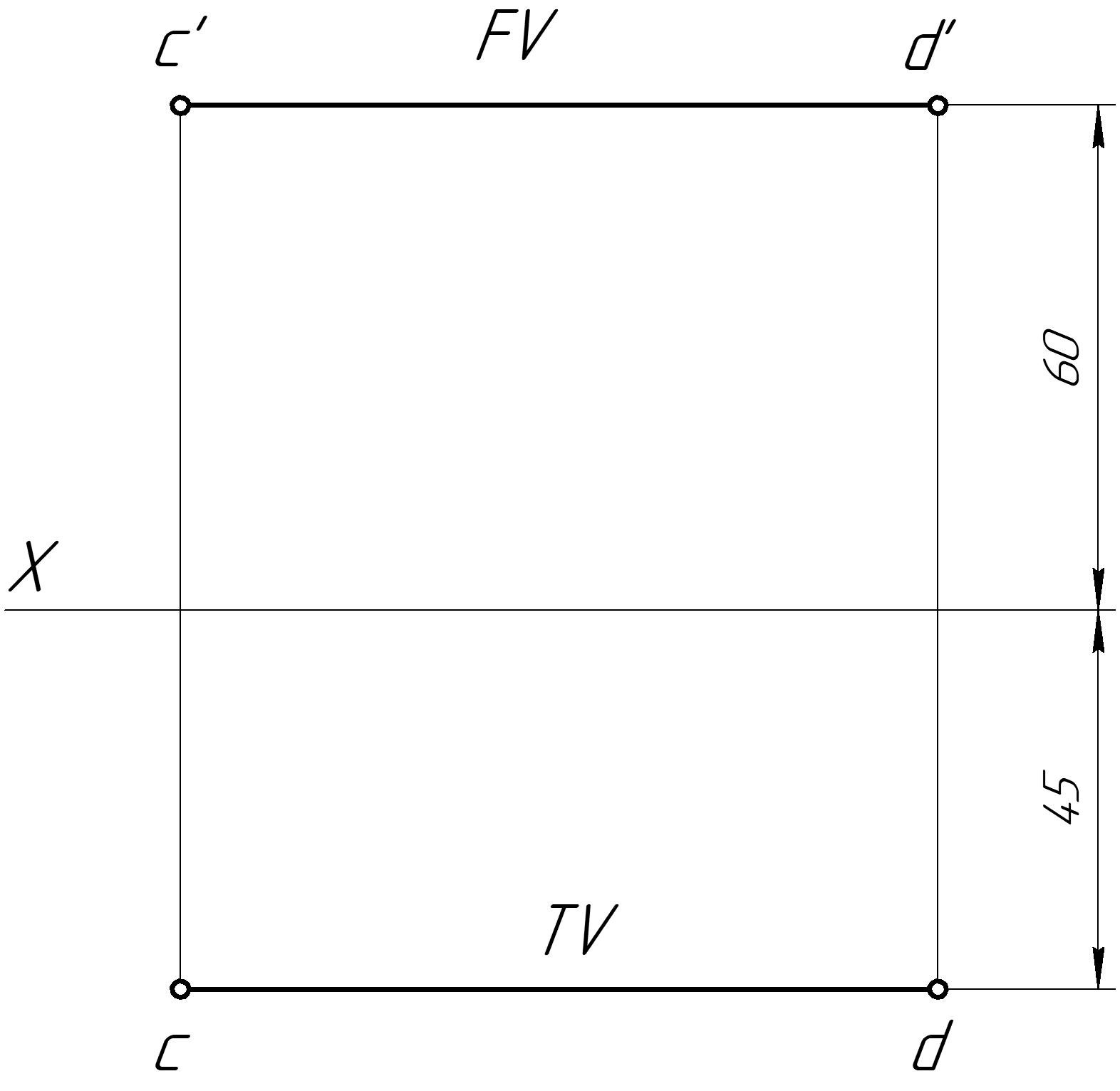

1. A line CD 90 long is parallel to both HP and VP. The line is 45 in front of the VP and 60

above the HP. Draw the projections of the line.


2. A 90 long line is parallel to and 25 in front of the VP. Its one end is in the HP. While the other

is 50 above the HP. Draw its projections and find its inclination with the HP.

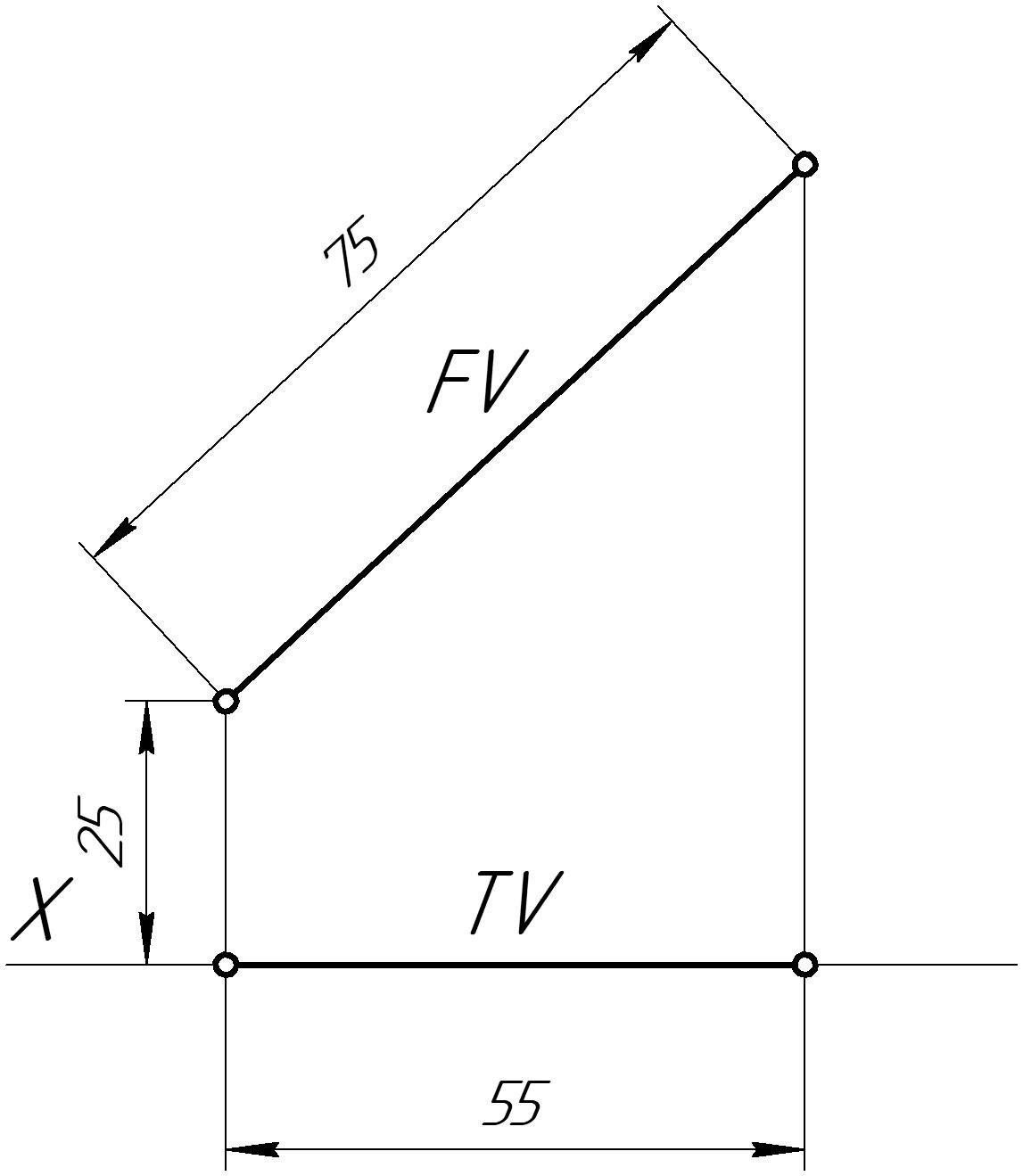

3. The top view of a 75 long line measures 55. The line is in the VP, its one end being 25 above

the HP. Draw its projections.

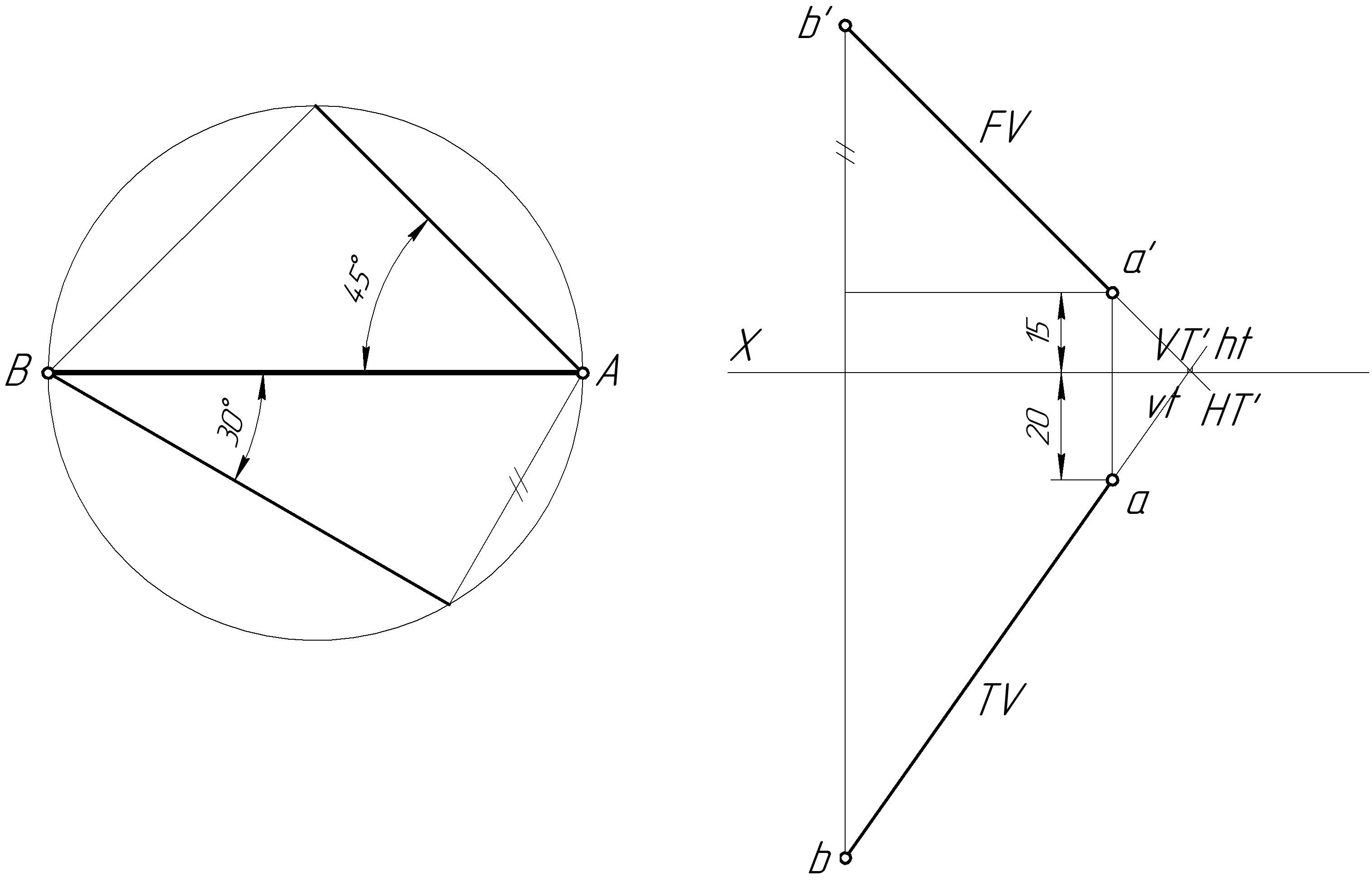

4. A line AB, 100 long, is inclined at 300

to the HP and 450

to the VP. The point A is 15 above

HP and 20 in front of VP. Draw its projections and locate its traces.


5. The distance between projectors of two points A and B is 70. Point A is 10 above HP & 15 in

front of VP. B is 50 above HP & 40 in front of VP. Find the shortest distance between A and B

and true inclinations.


1
Expert's answer
2021-05-31T06:40:27-0400

#1



#2



#3



#4



#5
